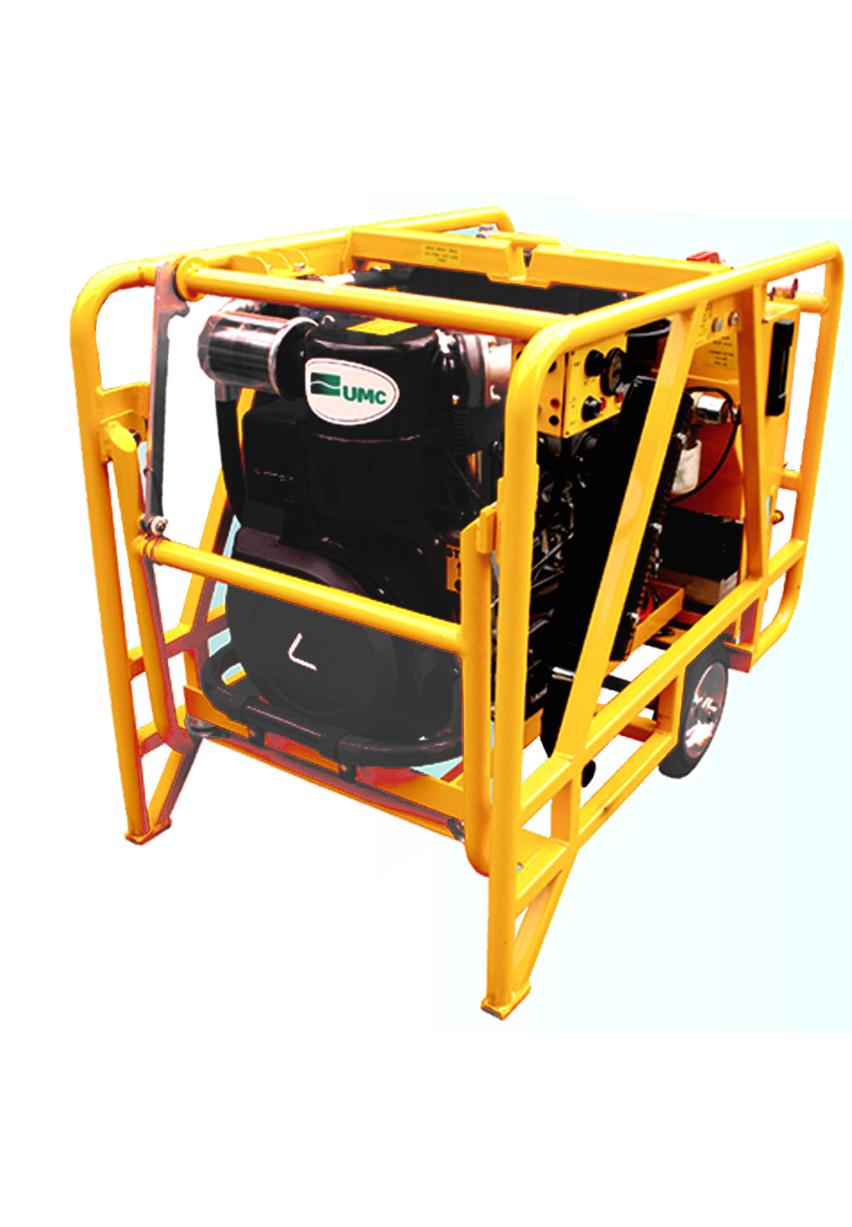

LD50 Hydraulic Power Pack System


The LD50 Hydraulic Power Pack is specifically designed to support the Mini Pamper, Twin Brush Machine and the hand tool. It is capable of powering one Mini Pamper on it's own, or two of the smaller machines. Both the 50 metre and 100 metre umbilicals are designed to suit the LD50.



Specifications
  • Dimensions | Length 1125mm Width 700mm Height 890mm
  • Weight | Excluding fluids 280kg Including fluids 335kg
  • Lifting | Single point lift from eye at centre of unit
  • Engine | Lombardini 9LD625-2 diesel engine, twin cylinder air cooled, on anti vibration mounts. 17.7 kW (24 HP) @ 3000 RPMSAE Net Continuous
  • Starting Battery | 12V 60Ah, start current 590 amps
  • Output | Max flow 50lpm - Max pressure 158 bar at 3000 RPM. Flow can be adjusted down to 25 lpm using the engine throttle. A pressure compensated flow control can divert oil back to tank for further reduction of operating flow requirement
  • Connections | Flat face couplings (male supply, female returns)
  • Electrical output | 12v DC connections, 10 amps
  • Hydraulic Oil | Shell Tellus 32 or similar. (In temperature climates)
  • Tank Capacity | Hydraulic oil 57 litres. Fuel 10 litres
  • Controls | Electric start, spring detent engine shut down lever, throttle lever, hydraulic flow diverter valve, flow reduction valve, pressure relief valve
  • Indicators | Hydraulic & fuel tank sight glass gauges. Hydraulic pressure, Hydraulic flow & temperature. Engine low oil presssure & charge warning lamps
  • Information | Specification may change due to constant development of the power pack
